DRIVER INFORMATION CENTER 4.2-INCH DIAGONAL COLOR DISPLAY INCLUDES DRIVER PERSONALIZATION WARNING MESSAGES AND VEHICLE INFORMATION
30 000 LB. GCWR (13 607 KG)
SPARE TIRE DELETE (STD)
LICENSE PLATE KIT FRONT
STEERING WHEEL LEATHER-WRAPPED WITH AUDIO AND CRUISE CONTROLS
REMOTE KEYLESS ENTRY
SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE Allows the selection of 7 000 lb. 8 000 lb. front axles and/or 15 500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
6-SPEAKER AUDIO SYSTEM
WHEELBASE 165 (419.1 CM) 84 CA (STD)
STEERING WHEEL AUDIO CONTROLS
FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL PIRELLI Max Axle Load: 7 940 lb. (STD)
REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
AUDIO SYSTEM CHEVROLET INFOTAINMENT SYSTEM WITH 8 DIAGONAL COLOR TOUCH-SCREEN AM/FM stereo with seek-and-scan and digital clock includes Bluetooth handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse select and install apps to your vehicle. Apps include Pandora iHeartRadio The Weather Channel and more. Includes (TG5) Single-slot CD/MP3 player (UQ3) 6-speaker audio system (UDD) 4.2 diagonal Driver Information Center (NP5) Leather-wrapped steering wheel and (UK3) Steering Wheel Audio Controls. Requires (A52) Front 40/20/40 split-bench seats.)
SUMMIT WHITE
WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
JET BLACK CLOTH SEAT TRIM includes manually adjustable driver lumbar
PAINT SOLID
SEAT ADJUSTER DRIVER 10-WAY POWER
GVWR 15 000 LB. (6804 KG)
REAR AXLE 4.30 RATIO Max road speed: 75 MPH
WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
SINGLE-SLOT CD/MP3 PLAYER
REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-140 SINGLE REDUCTION

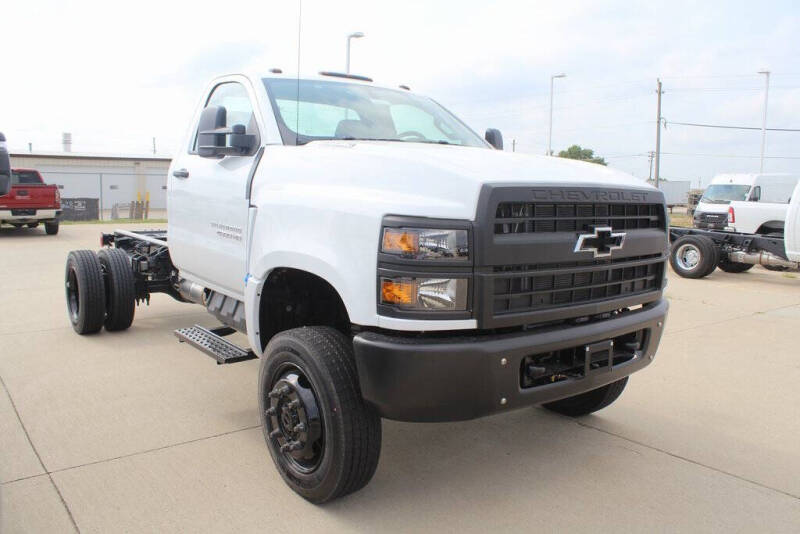

4500 HD SERIES
POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
